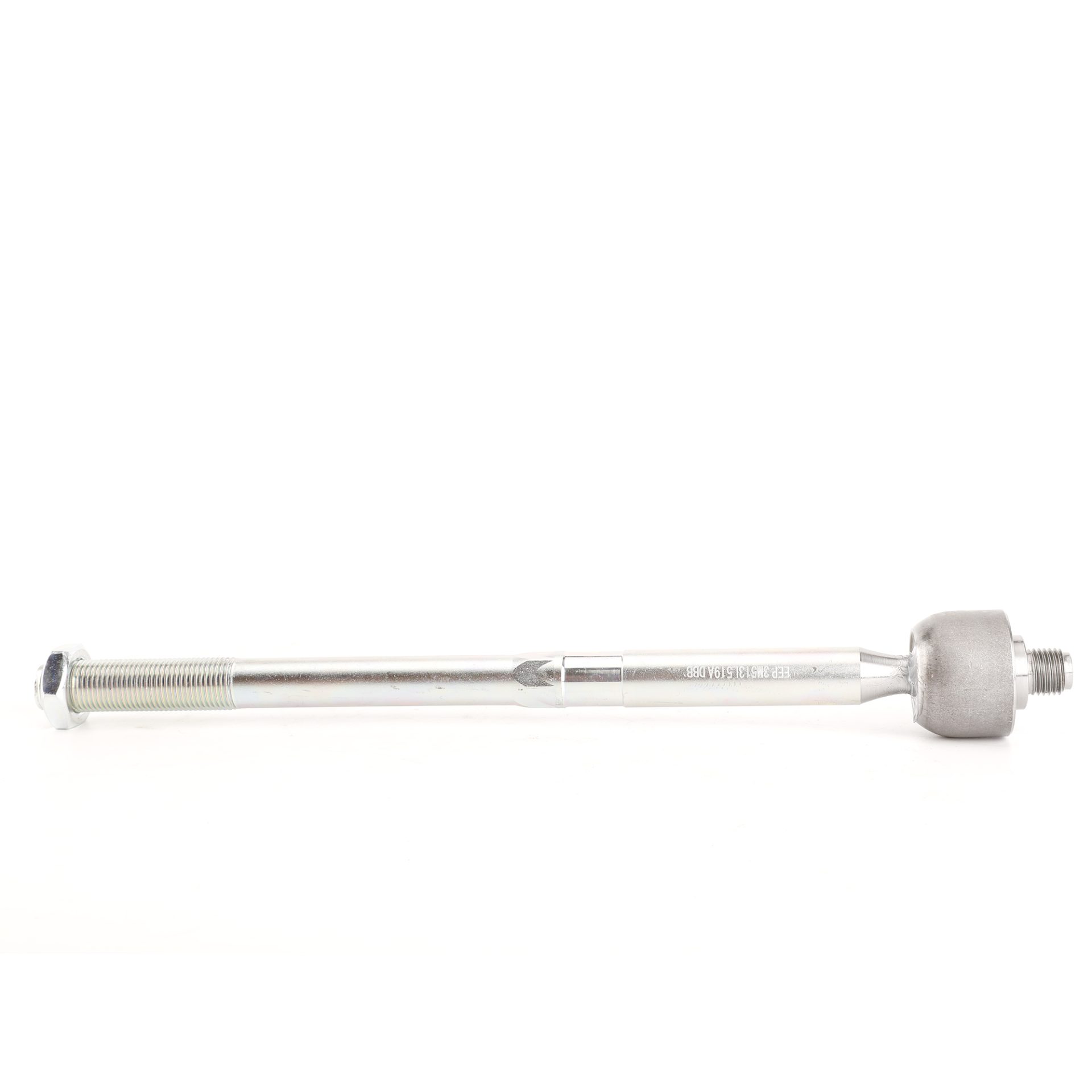

Rack End
The auto rack end mainly consists of ball pin, ball seat, dust cover, spring and other components. One end of the ball pin is connected to the steering knuckle, and the other end is located in the ball holder, which is connected to the tie rod through the spring and other devices. As the connecting part between the tie rod and the steering knuckle, it can accurately transfer the pull or push force of the tie rod to the steering knuckle, so that the wheels can be steered according to the driver's wishes.
Product Description
| Car Model | for Toyota Honda Nissan Mazda Mitsubishi Subaru Hyundai Kia |
| Part Number | For Japanese & Korean Cars, OEM Standard |
| Material | Steel |
| MOQ | 10 PCS |
| Warranty | 12 Months |
| Delivery | 1-7 days for stock items, 30-60 days for production items |

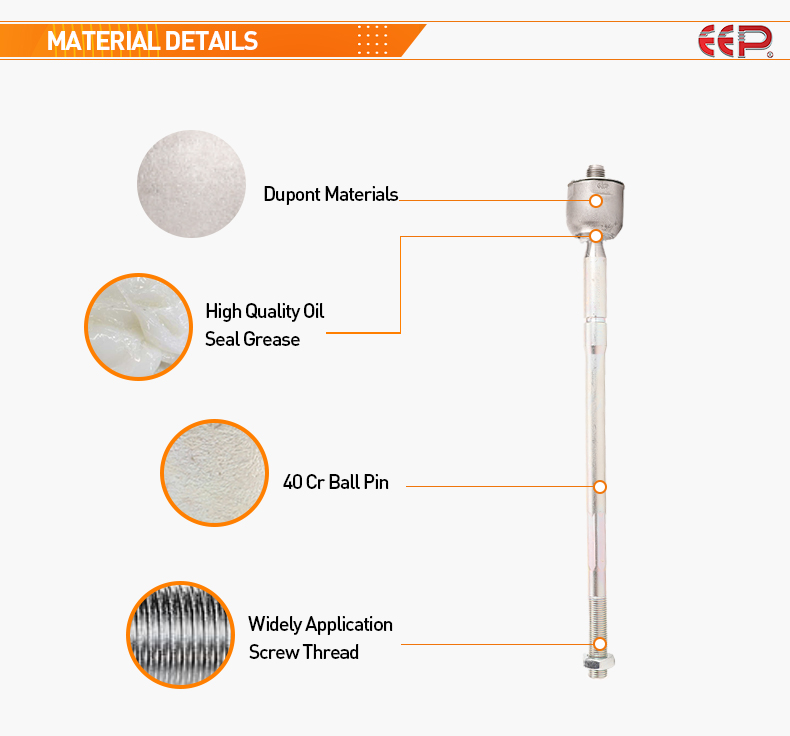

QC Quality
1.The housing blank:
Adopted national standard NO 45# Steel and forging molding under the condition of high temperature of 1200℃.
2.Ball Stud:
Adopted the international standard 40CR steel material and automatic mirror treatment to ensure that the ball stud rotation operating normally.
3.Boot:
Adopted imported neoprene to ensure of its oil and fire resistance, ozone resistance, acid and alkali resistance, high or low temperature test (-40 ℃ --120 ℃), high tensile strength and air tightness.
4.Ball Race:
Adopted imported US DuPont 500P materials to ensure its excellent abrasion resistance.
Grease: Specific imported premium lubricating grease to ensure high temperature 140 ℃ and low temperature -40℃.
5.Product Surface:
Adopted trivalent chromium plating surface treatment to ensure of environmental protection, rust resistance, salt spray resistance and corrosion resistance.
